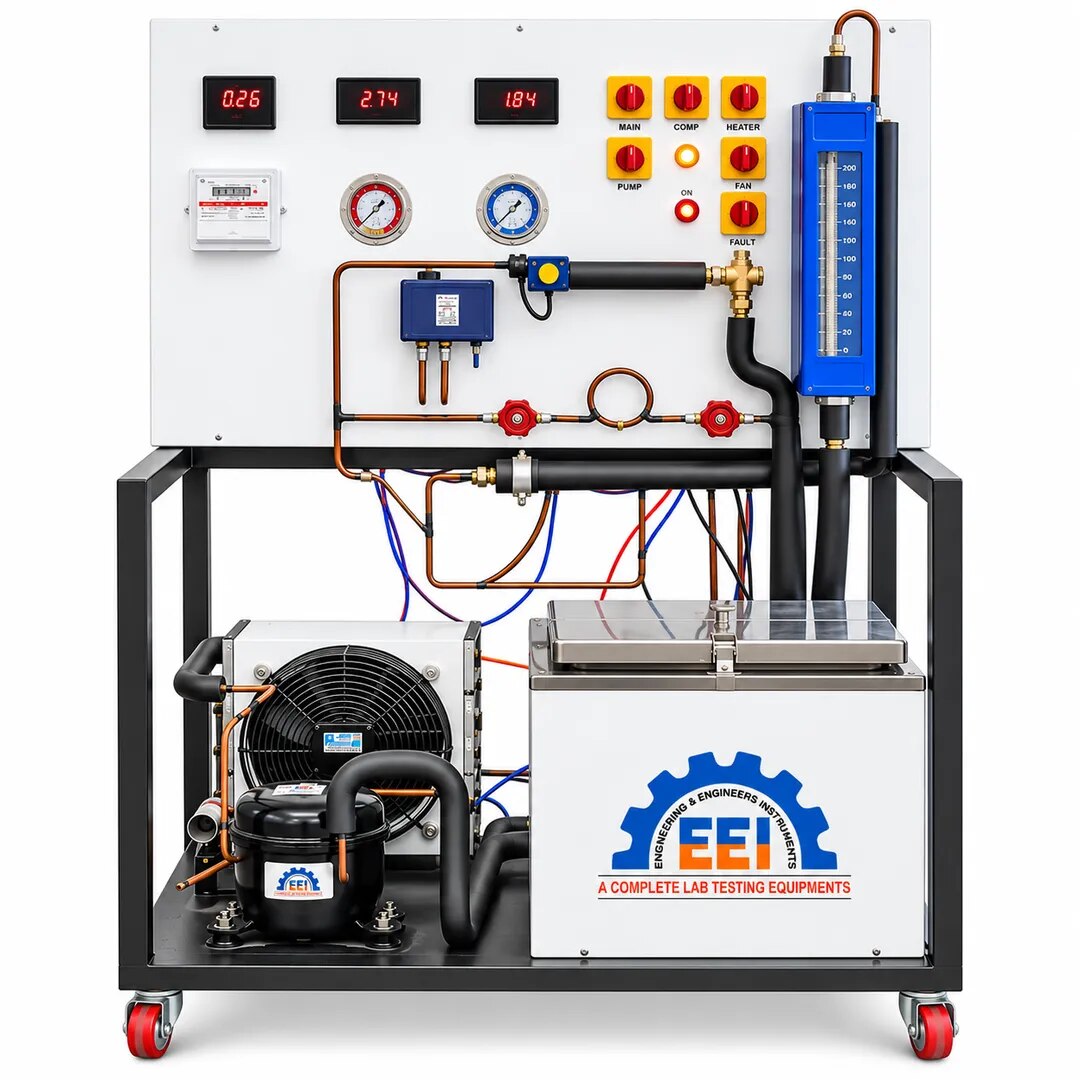

DIGITAL VAPOR COMPRESSION REFRIGERATION SYSTEM ICE PLANT TRAINER

DIGITAL VAPOR COMPRESSION REFRIGERATION SYSTEM ICE PLANT TRAINER

Make: EEI, Model: RAC-020

SYSTEM COMPONENTS & SPECIFICATIONS:

• Refrigerant Compressor: Hermetically Sealed, reciprocating type 0.75 TR or above make- Emerson / Equivalent. 1no’s

• Condenser: An air-cooled condenser with heat rejection capacity above 3.5 Kw

• Evaporator: Copper Coil immersed in insulated water tank of stainless steel 304 grade water tank size of 500 x 300x 300mm (l x w x h) approx.45 ltr. Housed in a metallic powder coated S.S. chamber with proper puff insulation. 1no’s

• Ice Cans: ICE cans made of GI sheet with supporting frame size 100mm x 50mm x 150mm (l x w x h) -8 no’s

• Stirrer Motor: Top mounted low speed geared motor AC 230 watt with extended shaft and axial steel baffles- 1 no’s

• Refrigerant filter dryer 1/4th size brazing type 1 no’s

• Expansion System Automatic expansion device with external equalizer arrangement

• Brass Flow Visualization Suitable Site Glass 1 no’s

• Safety cut out switch for high pressure and low pressure 1 no’s

• Refrigerant Freon /R600a/R290

• The whole system should be mounted on a Metallic powder coated frame and panel with Caster Wheels

• Floor area required: Approximately 1.5mtr x 0.8 mtr

• Power supply required: single phase, 230volts, 15 amps, and 50Hz.

Measuring instruments with digital indicators

• Digital volts meter 0-300vac 1nos,

• Digital ammeter 0-20 amps 1 no’s

• Dual display led power meter 1 no’s

• Thermocouples Teflon coated (PT-100 type with Temperature Range -45 C to 150 C)-6 no’s

• Temperature scanner dual display led 6 channels 1 no’s

• Analogue Pressure gauges glycerin filled back connection steel body for high pressure 10 bar and low pressure 3.5 bar 2 no’s

• Temperature and timer controller digital with NTP probe 1.5mtr 1 no’s

• Digital refrigerant flow indicator 1 no’s

• Brass refrigerant flow sensor -1 no’s

• Pressure transducers ¼” thread 0 to 25 bar- 0 to 45 bar 1 no’s each

• Dual display LED pressure indicator 1 no’s
