WORKING MODEL OF POWER WINDOWS
Description
Make: EEI, Model:SL-308, Origin: India
Description

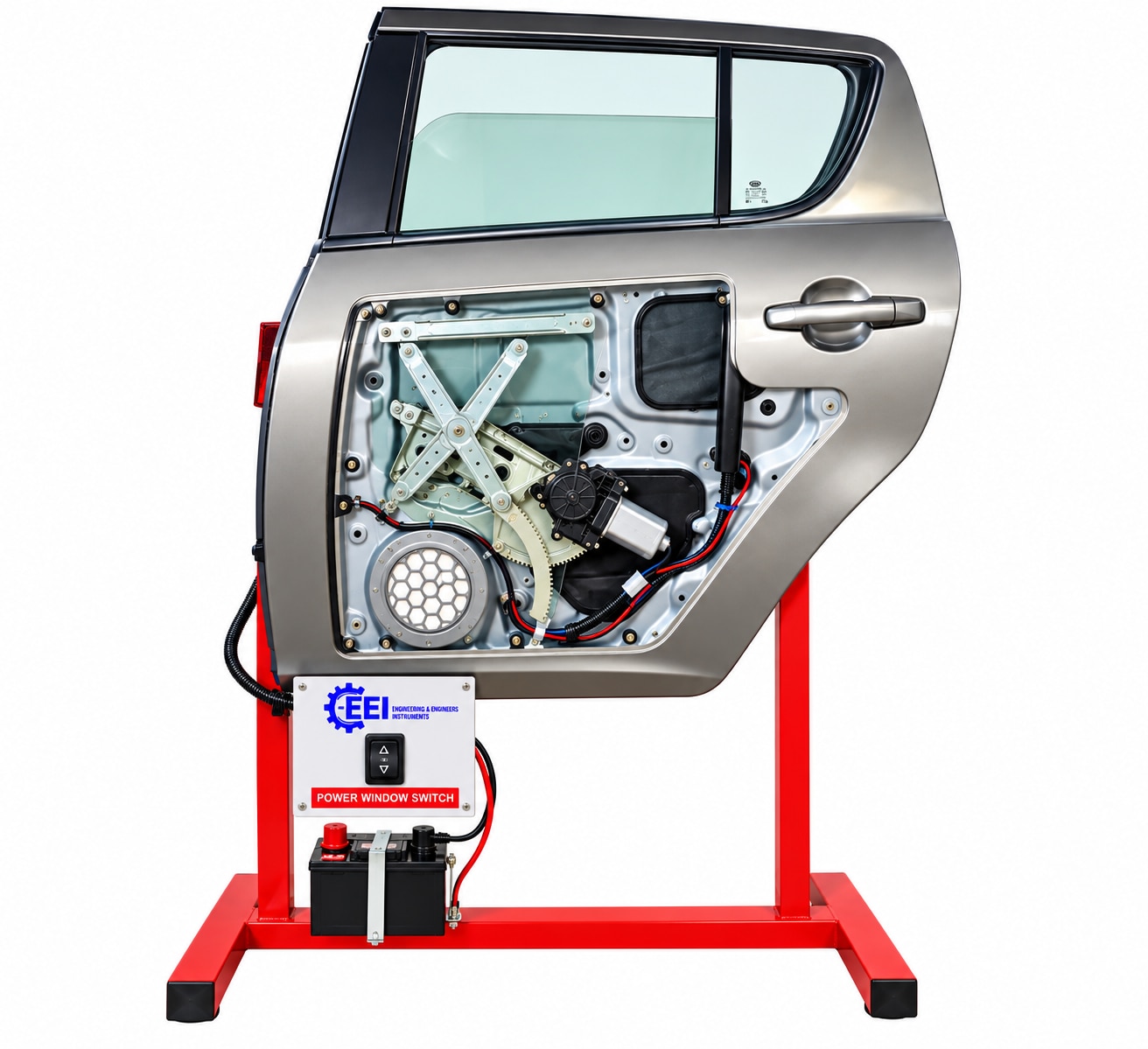

The Working Model of the Power Window System is designed to demonstrate the construction, operation and working principle of an electrically operated automobile window mechanism. The setup consists of an actual car door assembly with window glass, power window motor, regulator mechanism, wiring harness, control switch and 12 V DC battery mounted on a sturdy metal stand.
Major Components
• Automobile door assembly with window glass.
• Power window motor.
• Window regulator and linkage mechanism.
• Single UP/DOWN rocker switch.
• 12 V DC automotive battery.
• Wiring harness and connectors.
• Fabricated supporting frame.
• Electrical protection and mounting accessories.
Learning Outcomes
• Students will be able to identify power window components, explain the operating principle, understand motor direction control, interpret a basic wiring diagram and perform elementary electrical inspection and troubleshooting.
