Room Air Conditioner with Heat Pump System Trainer

Make: EEI, Model: RAC-06, Origin: India

Product Overview

The Room Air Conditioner with Heat Pump System is an educational training apparatus designed to demonstrate the operating principles of split air-conditioning systems in both cooling and heating modes. It is suitable for mechanical engineering colleges, ITIs, polytechnic institutes, refrigeration and air-conditioning (RAC) laboratories, HVAC training centres, and technical skill development institutions.

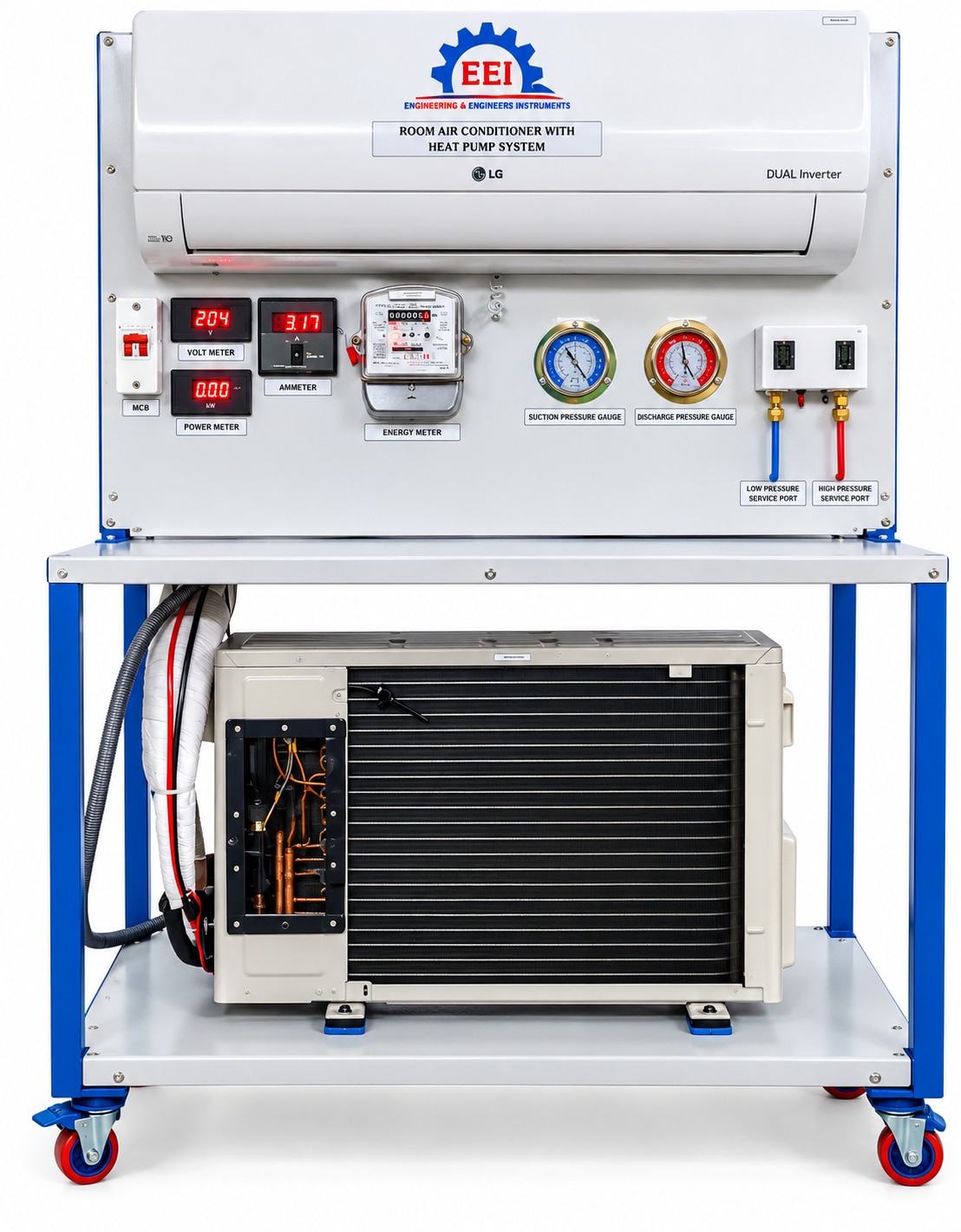

The system consists of a working split air conditioner, outdoor condensing unit, electrical instrumentation panel, pressure gauges, digital measuring instruments, and refrigerant piping connections. These components are mounted on a sturdy MS frame with caster wheels for convenient movement and laboratory demonstrations.

Working Principle

The trainer operates on the vapour compression refrigeration cycle and demonstrates both cooling and heat pump operation. In cooling mode, the indoor unit absorbs heat from the room while the outdoor unit rejects heat to the surroundings. In heating mode, the heat pump reverses the refrigerant flow, allowing the indoor unit to release heat into the room.

Students can observe changes in operating pressure, temperature, electrical power consumption, and other measurable parameters during system operation. The apparatus provides practical exposure to the operation of reversing-cycle air conditioning and heat pump technology.

Main Features

• Functional split air-conditioning system with heat pump operation.

• Indoor and outdoor units mounted on a laboratory training frame.

• Digital voltmeter and ammeter for monitoring electrical parameters.

• Digital power meter for observing power consumption.

• Energy meter for electrical energy measurement.

• Suction and discharge pressure gauges for refrigeration cycle analysis.

• Refrigerant service connections for pressure monitoring.

• Electrical control panel with switching and protection arrangements.

• Sturdy MS frame with caster wheels for mobility.

• Suitable for practical demonstrations and HVAC laboratory experiments.

Educational Applications

The Room Air Conditioner with Heat Pump System supports practical learning in refrigeration and air conditioning. Students can study the vapour compression cycle, heat transfer, cooling and heating modes, compressor operation, refrigerant pressure variations, and electrical energy consumption.

Depending on the available instrumentation, the trainer can also support experiments involving power input, operating temperatures, pressure readings, and comparative performance analysis in cooling and heating modes.

Applications

• Mechanical engineering laboratories

• Refrigeration and air-conditioning (RAC) laboratories

• HVAC training institutes

• ITIs and polytechnic colleges

• Engineering universities and technical institutions

• Industrial training and skill development centres

Conclusion

The Room Air Conditioner with Heat Pump System provides a practical platform for understanding modern air-conditioning and heat pump technology. Its working components and measurement instruments help students connect theoretical concepts with actual HVAC system operation.
