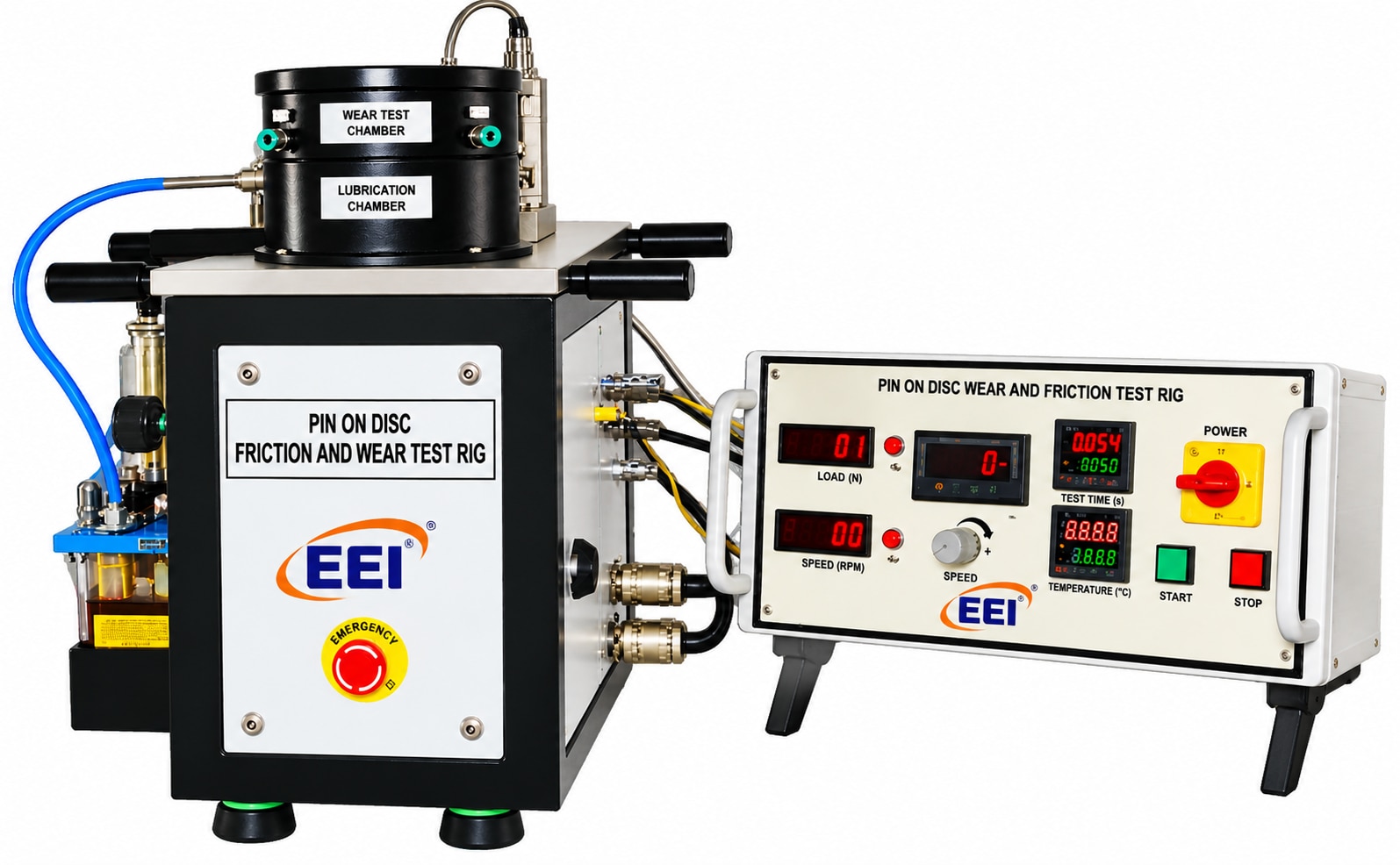

Pin on Disc Wear and Frication Testing Machine

Make: EEI, Model no: TB-20, Origin: India

• Test principal Pin-on-disc wear and friction testing arrangement

• Machine type Pin &ball Disc tribometer wear & friction testing machine

• Specimen Material and sizes 3mm to 12 mm - Dia 25mm to 30mm - Length

• Load application Dead weight

• Load range Up to 20 kg with dead weights of 0.5, 1 & 2 kg

• Load accuracy ±1% of indicated load

• Disc Rotational speed Variable, approximately 50–2,000 RPM

• Speed control Digital variable-speed drive

• Torque measurement Digital torque indicator/load cell

• Torque accuracy ±1% F.S. or better

• Coefficient of friction Automatic calculation and display in the software

• Wear measurement LVDT sensor, ±5 mm range

• Wear resolution 1 µm or better preferred

• Temperature measurement RTD/thermocouple near test specimen

• Temperature range Pin heating module up to 300°C

• Test duration Programmable timer/data logging

• Data acquisition Load, RPM, torque, friction coefficient, wear and temperature

• Display PC-based DAQ

• Data storage PC Based data export in excel and word file format

• Drive motor AC/servo motor with variable-speed control

• Safety Enclosed rotating/test area, emergency stop, overload protection

• Construction Rigid steel fabricated frame with machined mounting surfaces

• Power supply 230 V AC, 50 Hz, single phase or as required

• Documentation Operating manual, calibration certificate and test procedure.
