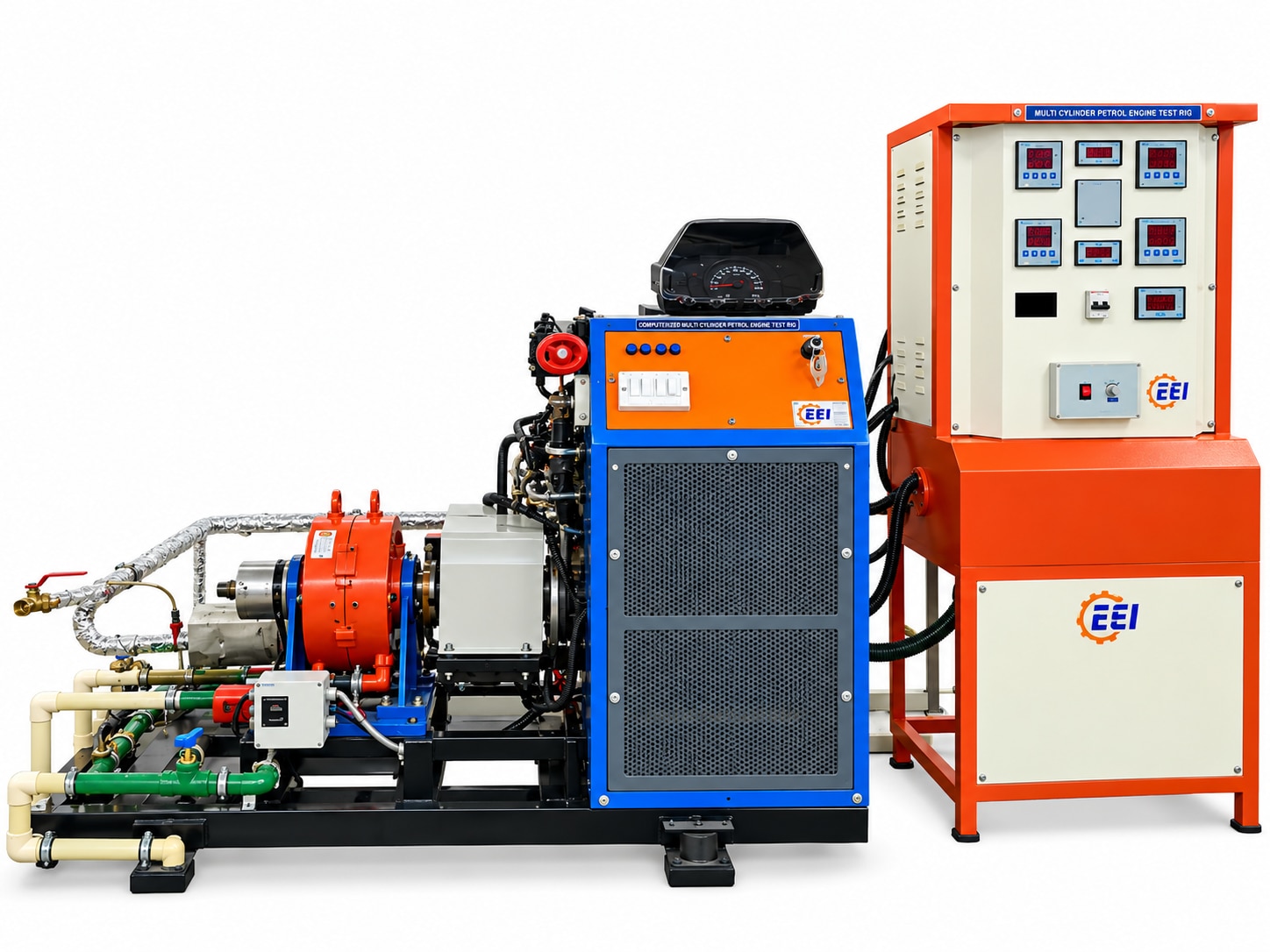

Multi Cylinder Petrol Engine Test Rig With Morse Test Facility

Engine: - Brand New Assembled Maruti/ Hyundai Make - Three or Four Cylinder,4-stroke, Liquid-cooled, Petrol Engine Self- Start Assembly with battery.

Loading Dynamometer

Electrical /Eddy current Dynamometer: Max Power: 10BHP, Torque: 45 N, Speed: 1500 – 3000RPM, Cooling –Water Cooled, Direction of rotation: Bi-Directional.

Control Panel: Suitable Metallic Powder coated Panel

Measuring Instrumentation:

Consists of Digital Display Indicators for measuring various parameters manually

Air Flow Measurement: Diffrential U Tube Manometer connected across an orifice meter with suitable air drum of 250 to 300 times of the swept volume (Approx.)

Fuel Measurement: 3way cock Burette with on/off valve/ Digital fuel flow indicator with load cell and fuel tank .

Torque Measurement: Torque Indicator with Load cell strain gauge.

Temperature Measurement: Digital Temperature Indicator with Thermocouples.

Speed Measurement: Speed Indicator and Proximity sensor

Experimental Capability:

1. Engine Performance Test (Manual and Computerized Mode optional)

2. Graph:

✓ Load v/s Mfc, Sfc

✓ Load v/s BP

✓ Load v/s Efficiencies

✓

Manual: Self - explanatory Instruction manual, sample calculation.

Water flow measurement: Float type Rotameter

Exhaust gas calorimeter: Pipe in pipe type calorimeter for heat balance sheet study.

Morse Test :Ignition Control Individual cylinder cut-off switches for Morse test

Vibro-mounts (Anti Vibration Pads) can be supplied at free of Cost (6 nos.)

Note:

The unit will be having individual display unit for each parameter, so that the readings

can be taken manually and calculated for UG level. (Performance Test)

• Floor area required: 1.4mtr x1.0 mtr floor space

• Power supply required: single phase, 230volts, 5 amps, and 50Hz.
