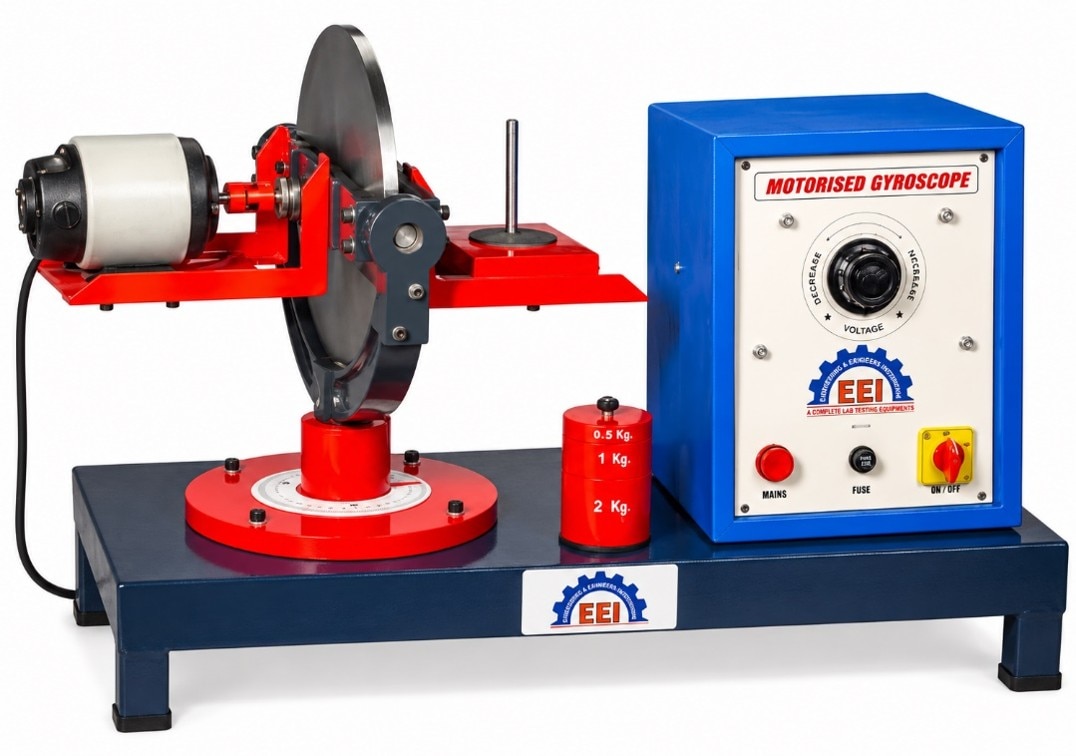

Motorized Gyroscope Apparatus

MAKE: EEI, MODEL: DOM-03, ORIGIN: INDIA

• Rotor: Precision dynamically balanced stainless steel (SS304 or better) rotor disc mounted on a hardened alloy-steel shaft, rotated by a variable-speed motor; moment of inertia of the gyroscope approx. 375 g·cm2

• Frame & Balancing: Rotor shaft coupled to motor on a rigid, powder-coated steel trunnion frame with precision sealed bearings in a yoke frame, free to rotate about the vertical axis; weight pan balances motor weight; disc can move about three axes

• Rotation axis (Gyro): Drive motor power 190 W; speed range 1000-6000 RPM; non-contact digital speed sensor (optical encoder), accuracy ±1 rpm, digital display

• Safety: Transparent high-impact polycarbonate protective cover above the rotating arm with electro-mechanical interlock cutting motor power when the cover is opened; operation is possible only when the cover is properly attached

• Power: AC 230 V, 50 Hz, 1 phase

• Dimensions & Weight: L x W x H: 620 x 400 x 450 mm (approx.); weight approx. 40 kg

• Standards & Quality: Manufactured by an ISO 9001:2015 certified manufacturer; CE marked; calibration certificate for speed sensors to be supplied

• Scope of Supply: 1 experimental unit, 1 set of tools, 1 set of instructional material, calibration certificate

• Warranty: 1 year or higher; onsite installation, demonstration and training to be provided
