Hydraulic Jet Pump Cut-Section Model

Make: EEI, Model: CSWM-06, Origin: India

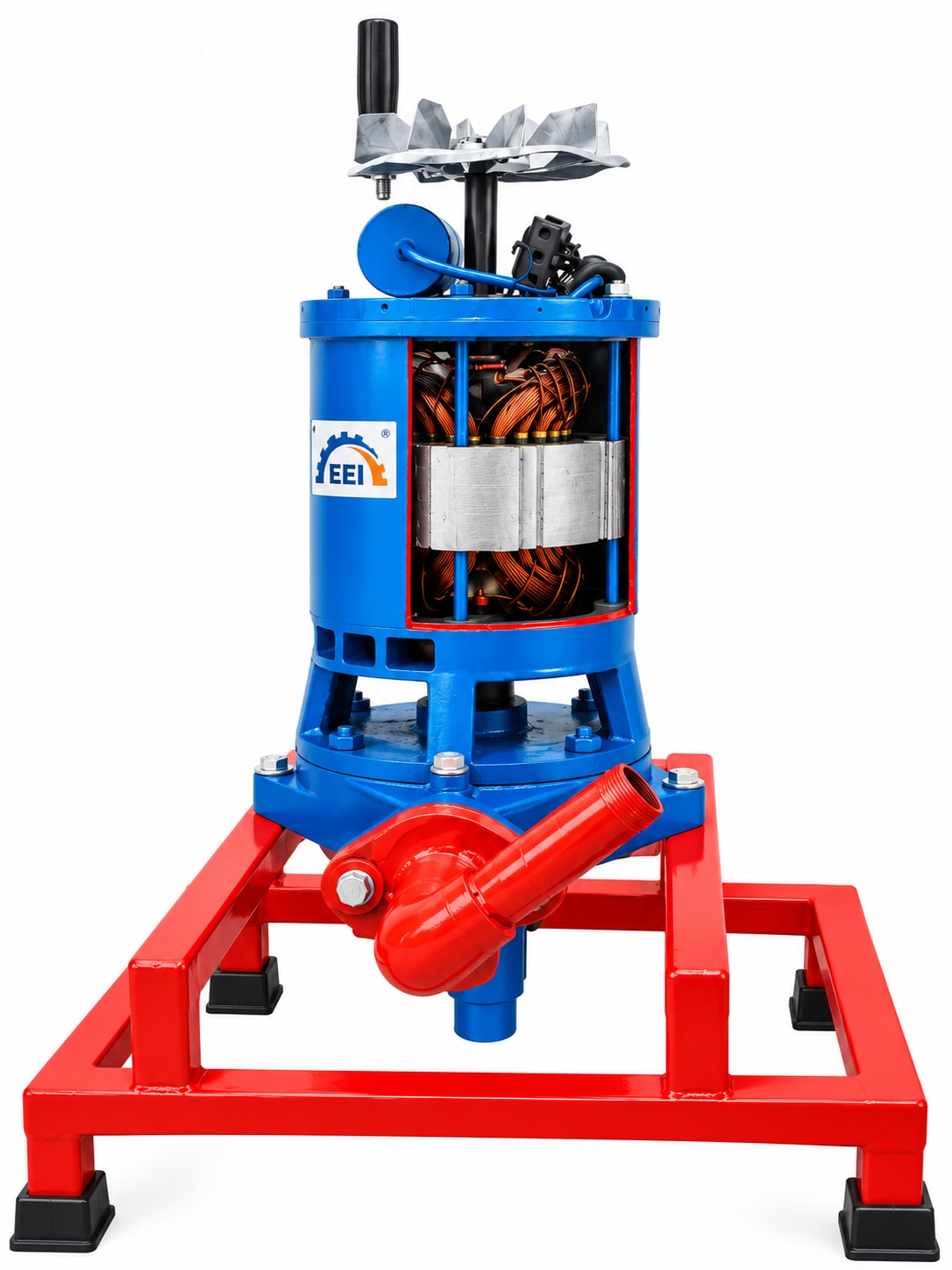

The Hydraulic Jet Pump Cut-Section Model is an educational training apparatus designed to demonstrate the construction and working principles of a hydraulic jet pump. The model features an exposed sectional view of the motor assembly, copper windings, rotor and stator components, shaft arrangement, and pump outlet, helping students understand the relationship between the mechanical and hydraulic sections of the equipment.

The blue pump body with contrasting red cutaway edges provides clear visibility of internal components. Mounted on a sturdy red steel frame, the apparatus is suitable for fluid mechanics, hydraulic machinery, and mechanical engineering laboratories.

Key Features

- Cut-section construction for easy observation of internal components.

- Exposed motor windings and rotor-stator assembly.

- Visible pump housing, shaft arrangement, and outlet section.

- Colour-coded components for convenient identification.

- Sturdy steel support frame with stable mounting feet.

- Suitable for practical demonstrations and engineering education.

- EEI branding for professional product identification.
