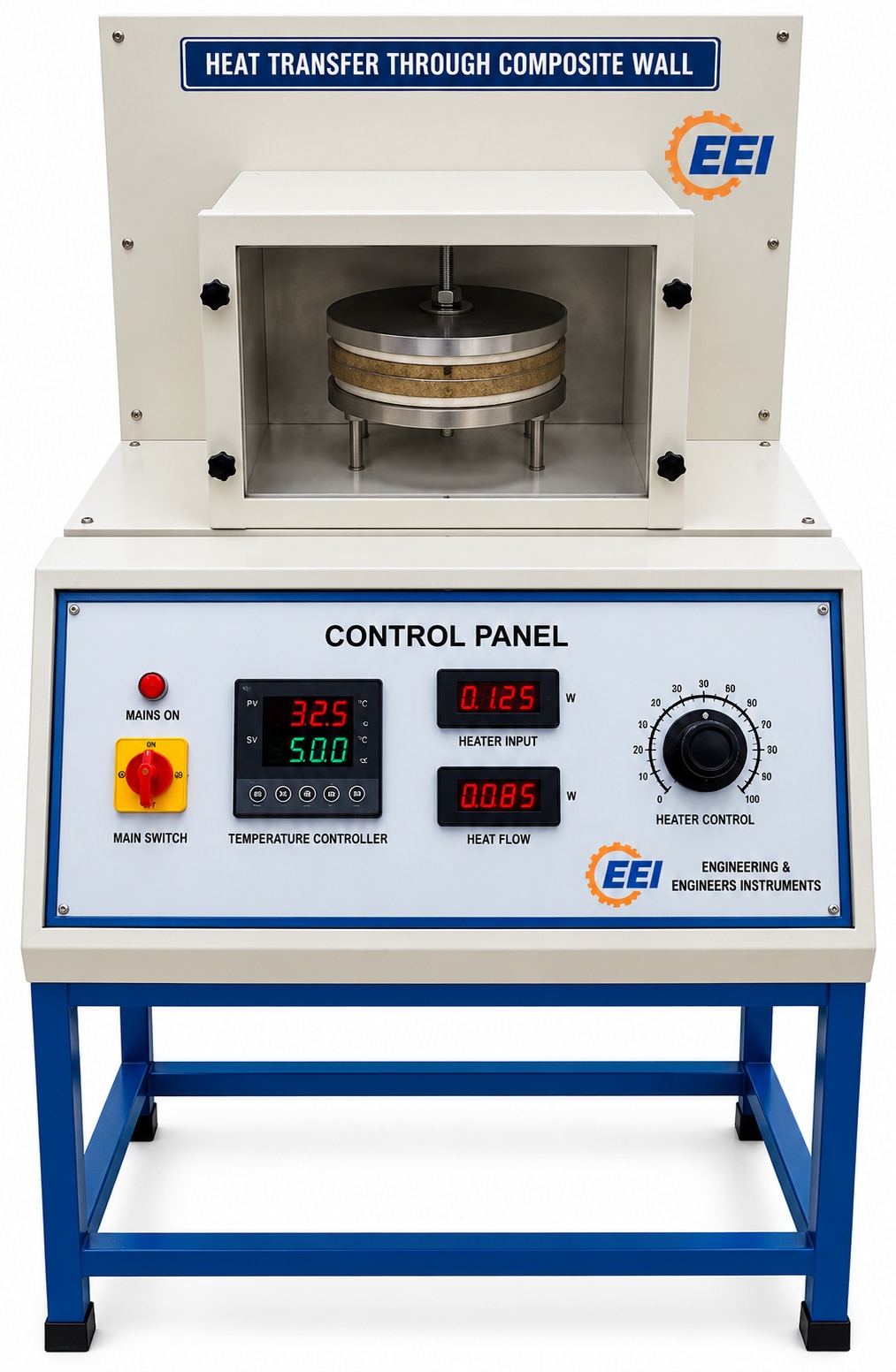

Experimental Digital Thermal conductivity of composite plane wall apparatus

Make -EEI, Model- HT-11, Origin- India

DESCRIPTION

Composite Wall Apparatus offers basic experiments for targeted teaching on the topic of heat conduction through various metals. Heat conduction occurs through the respective sample from top to bottom. Two samples can be inserted into the experimental unit at the same time, in order to investigate thermal conductivity through multi-layered metals. Perfectly matched components ensure rapid heating and trouble-free measurements. The temperature of the metal samples is taken on the top and bottom by means of thermocouples. The microprocessor-based instrumentation is well protected in the housing.

Main Objectives

• Calculate the thermal conductivity λ of different metals

• Calculate the thermal resistance of the sample

• Heat transfer with different samples connected in series

• Effect of sample length on heat transfer

• Effect of different metals on heat conduction

SYSTEM SPECIFICATION:

• Continuously adjustable heater

• Cold Additional water circulation (if required)

• Heater Heating power 500W and Temperature limitation: 200°C

• Samples Ø 150mmx10mm material (wood. Steel, Stainless steel, Brass, Aluminium)

Measuring Instruments:

• Voltmeter : Digital type, 0-300volt, AC

• Ammeter : Digital type, 0-2amp, AC

• Dimmer for heating Coil : 0-230v, 0-2amps

• Heater : Disc type Nichrome heater, 500 W

• Thermocouple used : 6-8 nos.

• Temperature indicator : Digital type, 0-199.9, Cr-Al

Other Details:

• The whole system is mounted on a Metallic powder coated fabricated frame with Caster Wheels.

• Floor area required approx. 800mm x 600mm x 1200mm (Length x width x height)

• Power Supply :230 V AC, 50 Hz, single phase.
