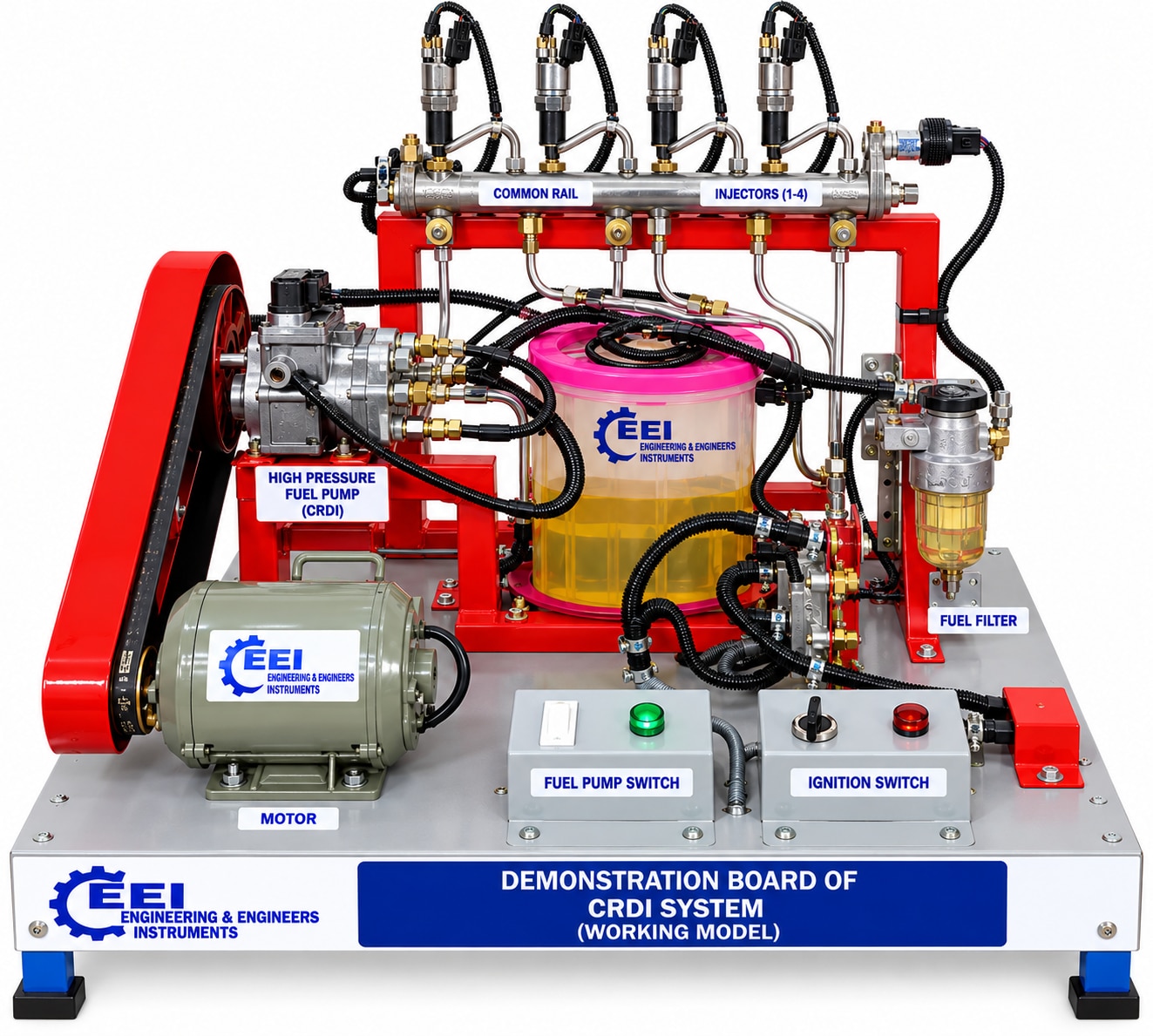

DEMONSTRATION BOARD OF CRDI SYSTEM WORKING MODEL
Description
Make: EEI, Model:SL-74, Origin: India
The CRDI (Common Rail Direct Injection) System Training Board is designed to provides a practical platform for identifying major components, understanding their functions and studying the basic operating principles of the CRDI system.
Major components:
1. Electric drive motor.
2. High-pressure fuel pump.
3. Common rail assembly.
4. Diesel fuel injectors.
5. Fuel pressure sensor, where fitted.
6. Fuel tank.
7. Fuel filter and water separator.
8. Fuel supply and return lines.
9. Control panel and switches.
10. Mounting frame and safety guards.
Experimental capabilities:
• Study the construction and working principle of the CRDI system.
• Identify the high-pressure pump, common rail, injectors and fuel filter.
• Understand fuel supply and pressure generation.
• Learn fuel-system inspection, maintenance and safe troubleshooting procedures.
