Cut-Section Model of Screw Air Compressor

Make: EEI, Model: CSWM-04, Origin: India

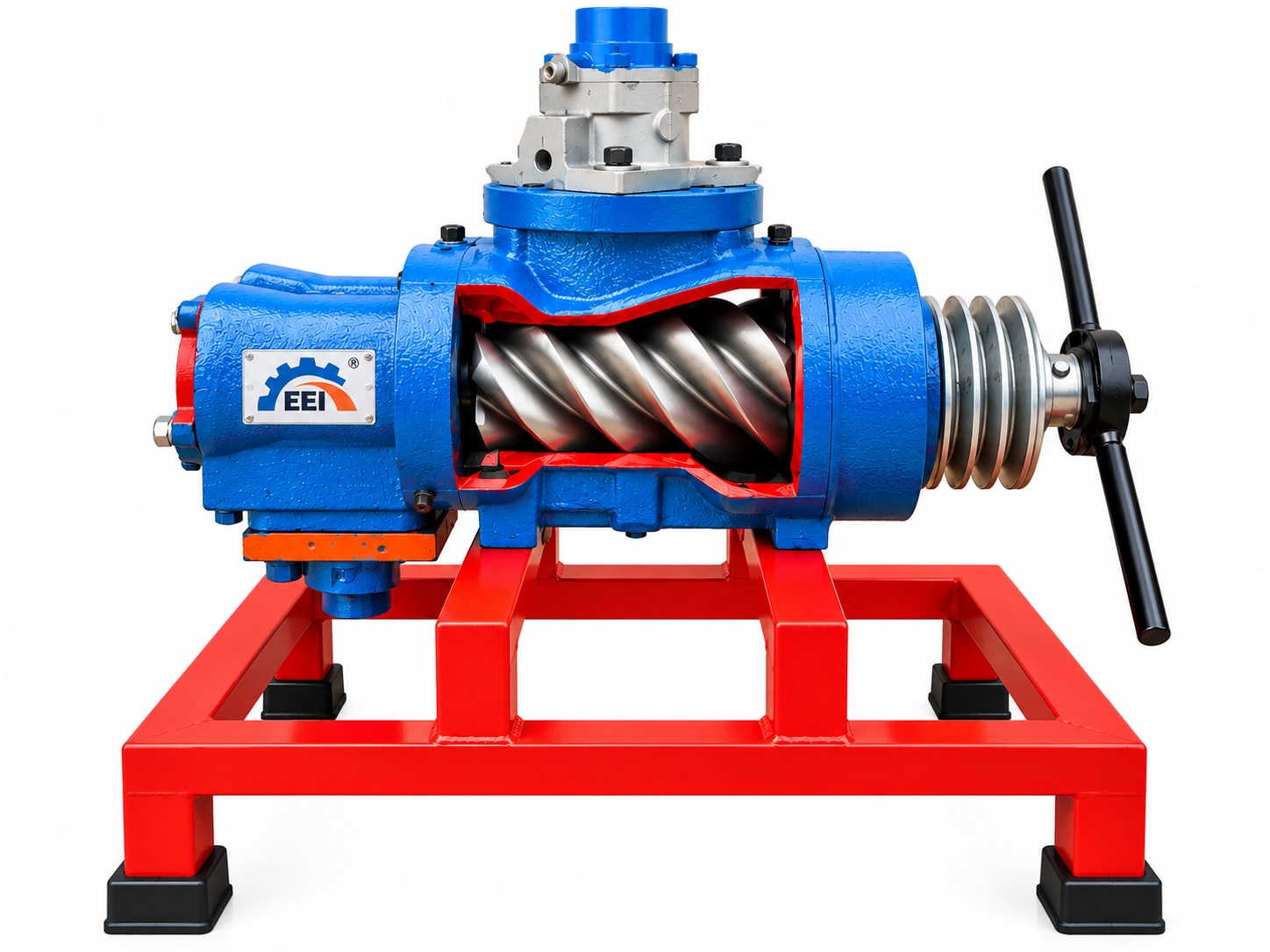

The Cut-Section Model of Screw Air Compressor is an educational demonstration apparatus designed to explain the construction, internal components, and working principle of a rotary screw compressor. The model features an exposed cutaway housing that reveals the helical rotor assembly, helping students understand how air is compressed as it moves through the rotor chambers.

The compressor housing is finished in blue with contrasting red cutaway edges for clear visibility of the internal mechanism. The unit includes a shaft and coupling arrangement, mounting supports, and a sturdy red steel frame for stable laboratory demonstrations. An EEI logo is incorporated into the housing for professional product identification.

This training model is suitable for mechanical engineering laboratories, pneumatic systems training, industrial maintenance programmes, and technical education institutions.

Key Features

- Cut-section design for clear observation of internal components.

- Exposed helical screw rotors for understanding the compression process.

- Robust compressor housing with colour-coded cutaway sections.

- Visible shaft, coupling, and associated mechanical components.

- Sturdy steel mounting frame with protective foot supports.

- EEI branding for professional product presentation.

- Suitable for classroom teaching and practical demonstrations.
