Cut-Section Model of Rotary Type Refrigerant Compressor

Make: EEI, Model: CSWM-02, Origin: India

The Cut-Section Model of Rotary Type Refrigerant Compressor is an educational demonstration apparatus designed to help students understand the construction, internal components, and working principles of rotary compressors used in refrigeration and air-conditioning systems.

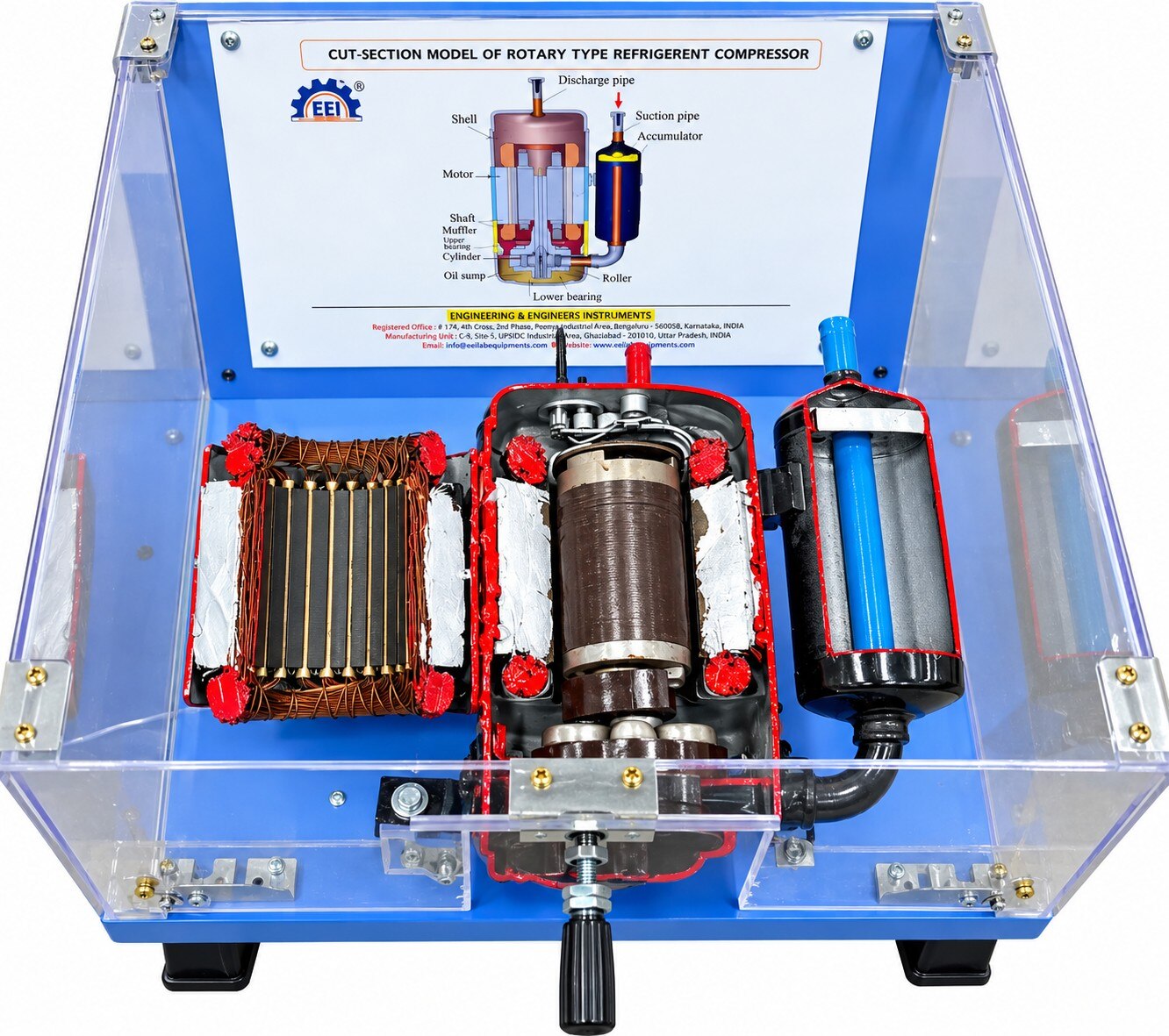

The model features an exposed cross-section of the compressor assembly, allowing learners to observe the motor windings, rotor, shaft, compression mechanism, bearings, oil sump, suction pipe, discharge pipe, and accumulator. The transparent protective enclosure provides visibility of the internal components while helping protect the model during laboratory demonstrations.

Mounted on a sturdy blue base, the apparatus is suitable for practical teaching, component identification, and technical demonstrations in mechanical engineering, HVAC, refrigeration, and air-conditioning laboratories.

Key Features

- Cut-section design for visual understanding of internal compressor construction.

- Exposed motor windings and rotor assembly.

- Demonstration of the rotary compression mechanism.

- Identification of suction and discharge pipes.

- Visible shaft, bearings, cylinder, roller, and oil sump.

- Accumulator and muffler components for instructional purposes.

- Transparent protective enclosure with secure mounting hardware.

- Durable base for laboratory and classroom use.
