Cut-Section Model of Automatic Transmission System

Make: EEI, Model: CSWM-07, Origin: India

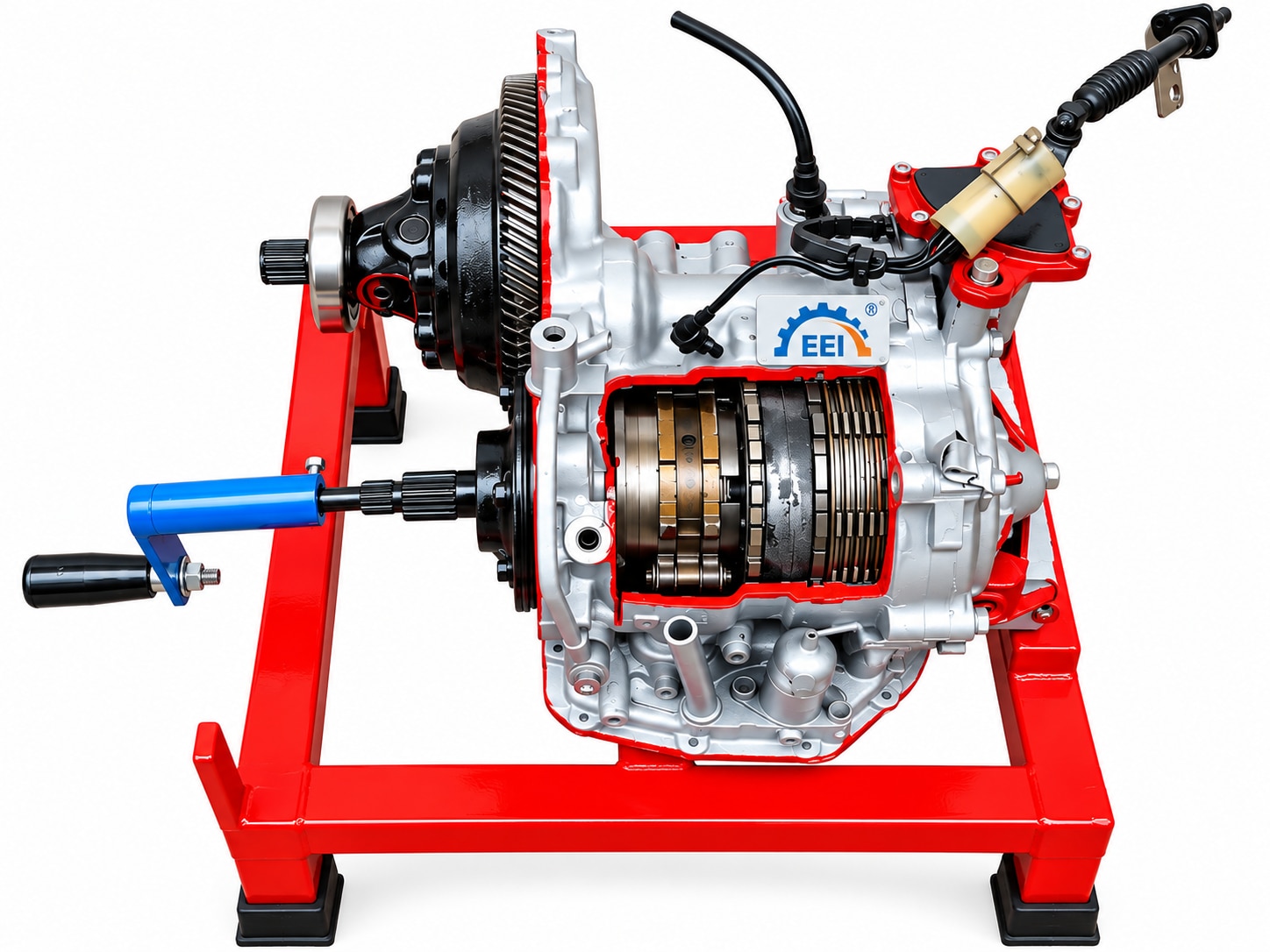

The Cut-Section Model of an Automatic Transmission System is an educational training apparatus designed to demonstrate the internal construction and operating principles of an automotive automatic gearbox. The model features a sectional opening that exposes important transmission components, allowing students to study the arrangement and interaction of gears, clutch packs, shafts, and other mechanical elements.

The unit includes a metallic transmission housing with red-highlighted cut sections, a manual operating crank, external linkages, and a sturdy red steel support frame. The exposed components help learners understand how an automatic transmission transfers engine power and provides different drive ratios for vehicle operation.

This model is suitable for automobile engineering laboratories, mechanical engineering departments, ITIs, polytechnic institutes, and automotive technician training centres.

Key Features

- Cut-section design for clear observation of internal transmission components.

- Exposed clutch packs, gears, shafts, and rotating assemblies.

- Detailed gearbox housing with colour-highlighted sections.

- Manual crank arrangement for demonstration purposes.

- Visible external linkages and associated mechanisms.

- Strong steel mounting frame for stable laboratory use.

- EEI branding for professional product identification.
