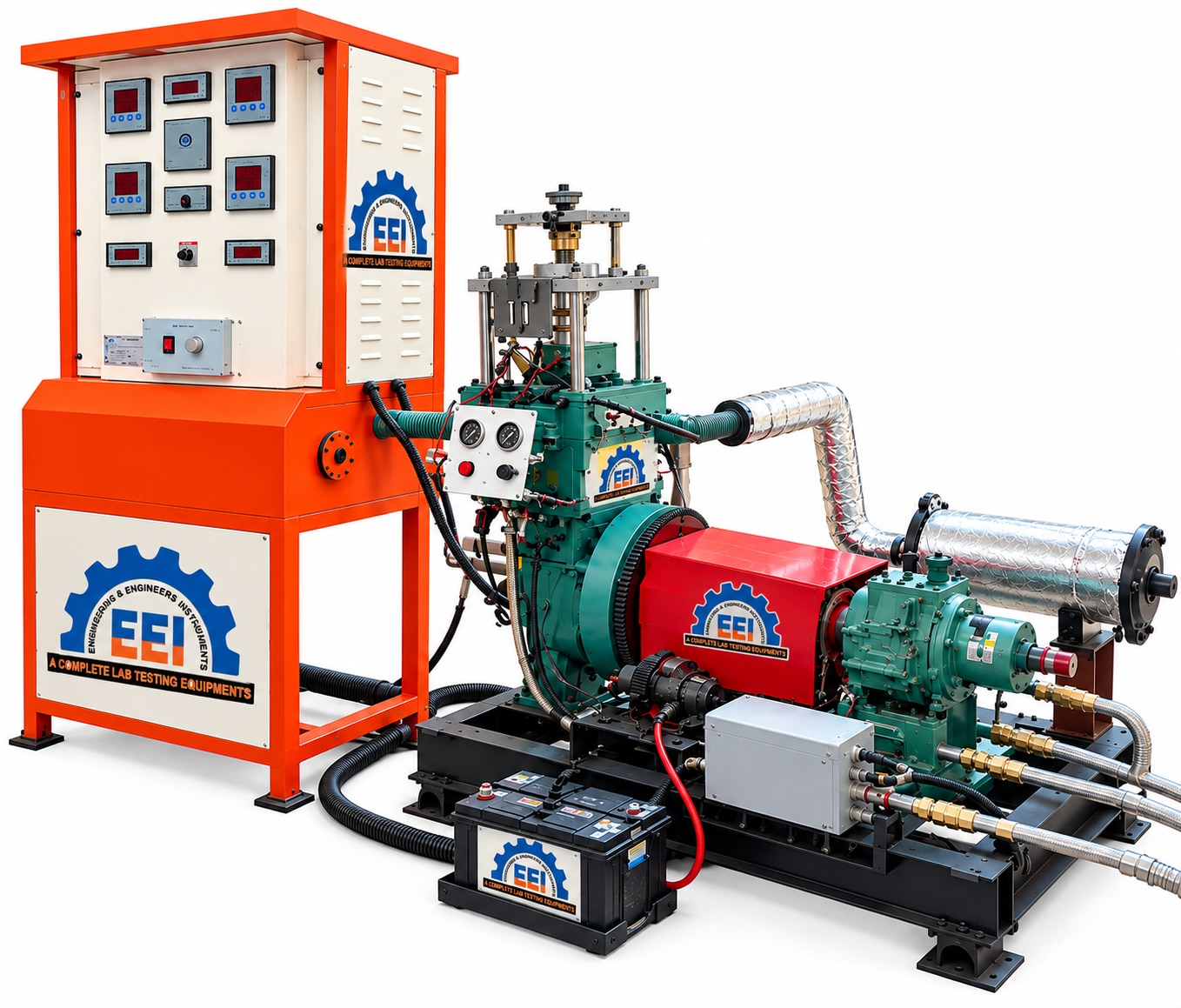

Computerized VCR diesel engine Setup

Make: EEI, Model: EEI-IC-VCR18, Origin: India

COMPUTERIZED VARIABLE COMPRESSION RATIO MULTI FUEL ENGINE TEST RIG

Engine: -

Brand New KIRLOSKAR, Single Cylinder,4-stroke, water-cooled, Diesel Engine with 5

HP Capacity@ 1500 rpm, Self- Start Assembly with battery.

VCR Head assembly: Manual adjustable VCR

Diesel/Bio diesel fuel: Variable CR from 12:1 to 20:1

Petrol: Variable CR from 6:1 to 10:1 – up to 4 HP @ 2000 rpm

Eddy current Dynamo meter: Max Power: 5 BHP,

Torque:25 N,

Speed: 1500 – 3000 RPM,

Cooling –Water Cooled,

Direction of rotation: Bi-Directional.

Control Panel: Suitable Metallic Powder coated Panel

Measuring Instrumentation:

Consists of Digital Display Indicators for measuring various parameters manually &

having facility to interface with the computer along with suitable software for

computerized measurement.

Air Flow Measurement: Air Rate Indicator with Differential Pressure Transducer

connected across an orifice meter with suitable air drum of 250 to 300 times of the swept volume (Approx.)

Fuel Measurement: Fuel Rate Indicator with Optical sensor/ Load Cell Type and 5 -

8- liter capacity fuel tanks.

Torque Measurement: Torque Indicator with Load cell strain gauge.

Temperature Measurement: Digital Temperature Indicator with Thermoplastic.

Speed Measurement: Speed Indicator and Proximity-sensor

Combustion Pressure Measurement: Piezo Electric,Range 0-5000 PSI

Crank Angle Measurement- Rotary Encoder, 360 PPR

Pre Calibrated Diesel Injectors for 180 bar to 220 bar will be provided

Experimental Capability:

1. Engine Performance Test (Manual and Computerized Mode)

2. Combustion analysis with PV-P theta Plots, Heat Release rate

3. Graph:

✓ Load v/s Mfc, Sfc

✓ Load v/s BP, IP, FP

✓ Load v/s Efficiencies

✓ Cylinder pressure v/s volume (PV)

✓ Cylinder pressure v/s crank angle (P)

✓ Heat release v/s crank angle (P)

DAQ: Suitable in built DAQ cards with Data Acquisition System.

Communication: USB.

Software:

Lab View based Windows 8 and above platform compatible Application software.

Manual: Self - explanatory Instruction manual, sample calculation.

Water flow measurement: Turbine type flow sensor

Exhaust gas calorie meter: Pipe in pipe type calorie meter for heat balance sheet study.

Viramontes: (Anti Vibration Pads) can be supplied at free of Cost (6 nos.)

Note:

The unit will be having individual display unit for each parameter, so that the

readings can be -taken manually and calculated for UG level. (Performance Test)

The same will be used for research purpose using PC and suitable user-friendly Lab View

based software (Performance and Combustion Analysis)

SERVICES REQUIRED TO BE ARRANGED BY THE CUSTOMER AT HIS COST:

a. Water supply & drainage arrangement.

b. Facility for Exhaust Gas removal.

c. Electric Supply 230 V, 50 Hz, 1 Ph.

d. Fuel (Diesel/ Petrol) for Demonstration of the Test Rig- (10 lts Appx.)

e. Platform to place the Engine Test Rig to be prepared by the customer and drawing and

guidelines will be furnished by us.

Computer System specification:

Assembled PC latest configuration (16 GB RAM/512 GB SSD / Windows 11) with Wireless Keyboard

& Mouse

Monitor: 22 Inch (54.48 cm) with 1920 x 1080 Pixels LED Monitor

UPS: ZEBRONICS U735 600 VA/360 W Micro controller Based UPS.
