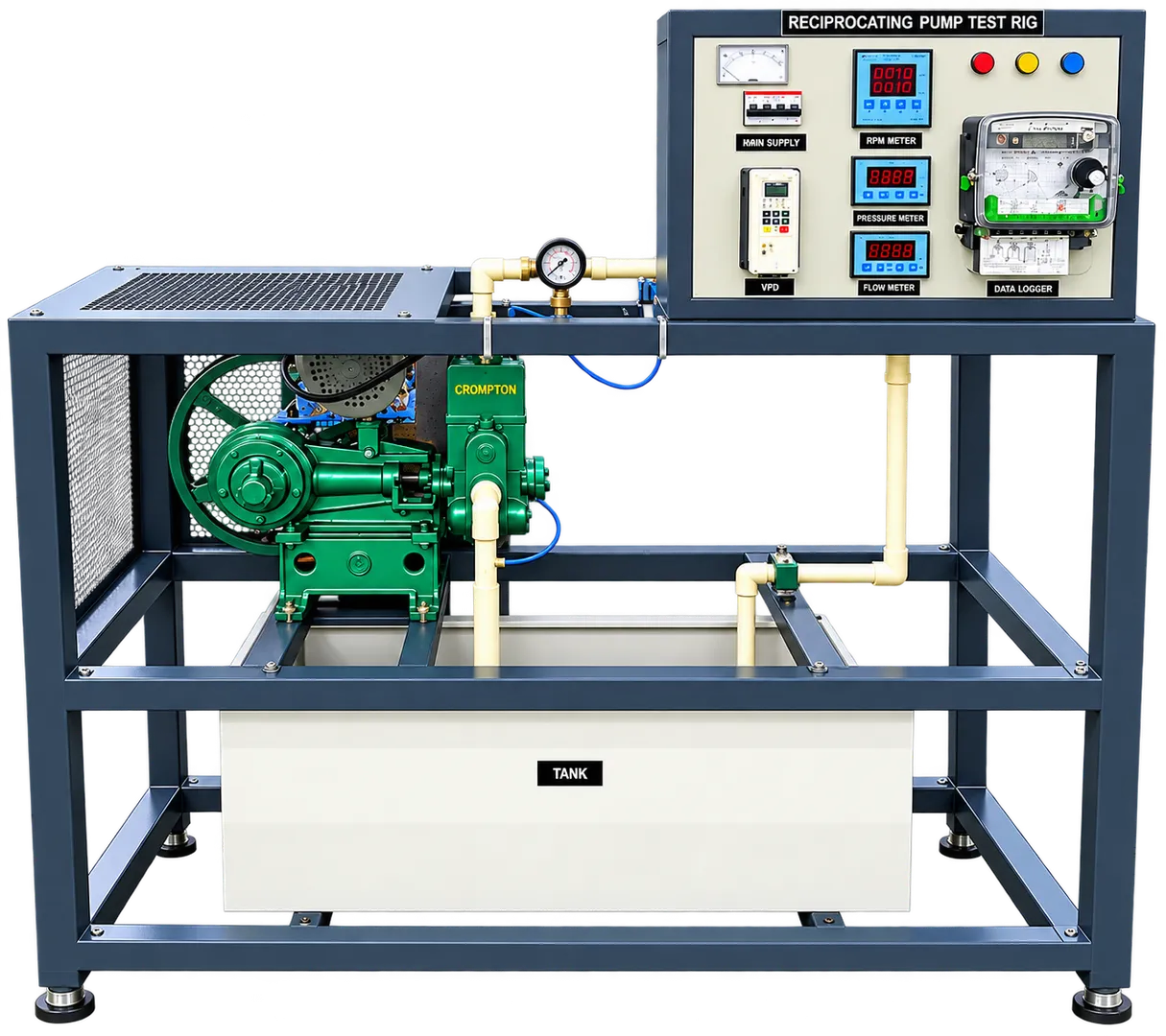

Computerized Reciprocating Test Rig

Single/double acting reciprocating pump setup with motor drive, pressure gauges, discharge tank, stroke adjustment mechanism, and flow measurement system. Pump Type: Single-cylinder reciprocating pump (single/double acting) Drive Unit: 0.5–1 kW AC/DC motor, ~1420–1500 RPM with speed control Flow Rate: Up to 20–30 LPM (approx.) Head: Up to 20–50 m (approx.) Speed: Variable (pump & motor) Pressure Measurement: Bourdon gauges (suction & delivery) Flow Measurement: Measuring tank with piezometer and scale Power Measurement: Energy meter / digital RPM indicator Tanks: Sump Tank: ~100–150 L (SS/MS with coating) Measuring Tank: ~30–50 L Structure: Compact MS powder coated frame with wheels Safety: Relief valve for overpressure protection Experimental Capabilities: Determination of volumetric efficiency Performance curve plotting (Head vs Discharge) Study of pressure vs power consumption
