BLDC MOTOR TRAINING BOARD

Make: EEI, Model:SL-48, Origin: India

Description:

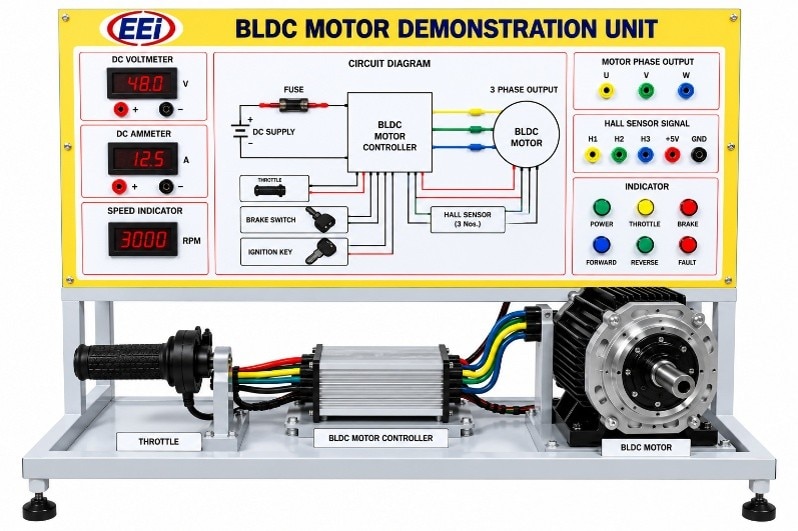

The unit consists of a BLDC motor, compatible motor controller, throttle control, and a demonstration panel with a circuit diagram, DC voltmeter, DC ammeter, speed indicator, motor phase output terminals, Hall sensor signal terminals, and operating status indicators. These components enable trainees to study the relationship between the DC power supply, motor controller, control signals, and motor operation.

Training Applications

1. Study of BLDC motor construction and working principles.

2. Understanding electronic commutation and motor controller operation.

3. Measurement of supply voltage and current during motor operation.

4. Observation of motor speed variation with throttle input.

5. Study of three-phase motor connections and Hall sensor signals.

6. Basic motor testing, electrical troubleshooting, and fault identification.

7. Introduction to electric vehicle drive systems and maintenance.
