Automotive Power Brake System Demonstration Model

Make: EEI, Model: CSWM-07, Origin: India

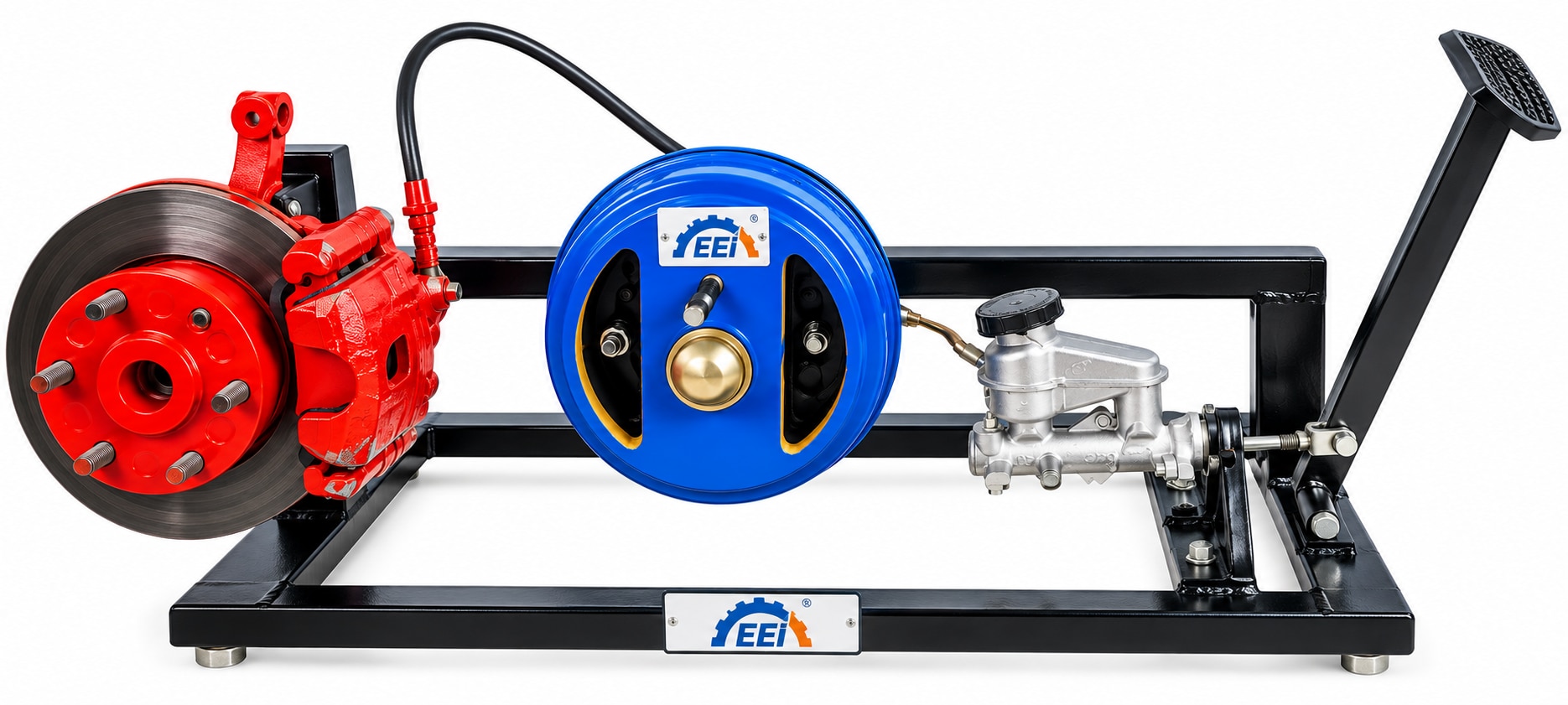

The Automotive Power Brake System Demonstration Model is an educational training apparatus designed to demonstrate the construction and working principles of an automotive braking system. The setup features a disc brake assembly, brake booster unit, master cylinder, connecting linkages, and pedal mechanism, helping students understand how pedal force is transmitted and amplified to produce effective braking.

The model is mounted on a sturdy black metal frame for convenient laboratory demonstrations. Colour-coded components improve visibility and make it easier to identify the major parts of the braking system. The apparatus is suitable for automobile engineering, mechanical engineering, and automotive technician training programmes.

Key Features

- Demonstration of automotive power-assisted braking principles.

- Disc brake rotor and caliper assembly for component study.

- Brake booster unit for understanding braking assistance.

- Master cylinder and associated mechanical linkages.

- Foot pedal mechanism for demonstrating brake actuation.

- Sturdy metal frame for stable laboratory use.

- EEI branding for professional product identification.
