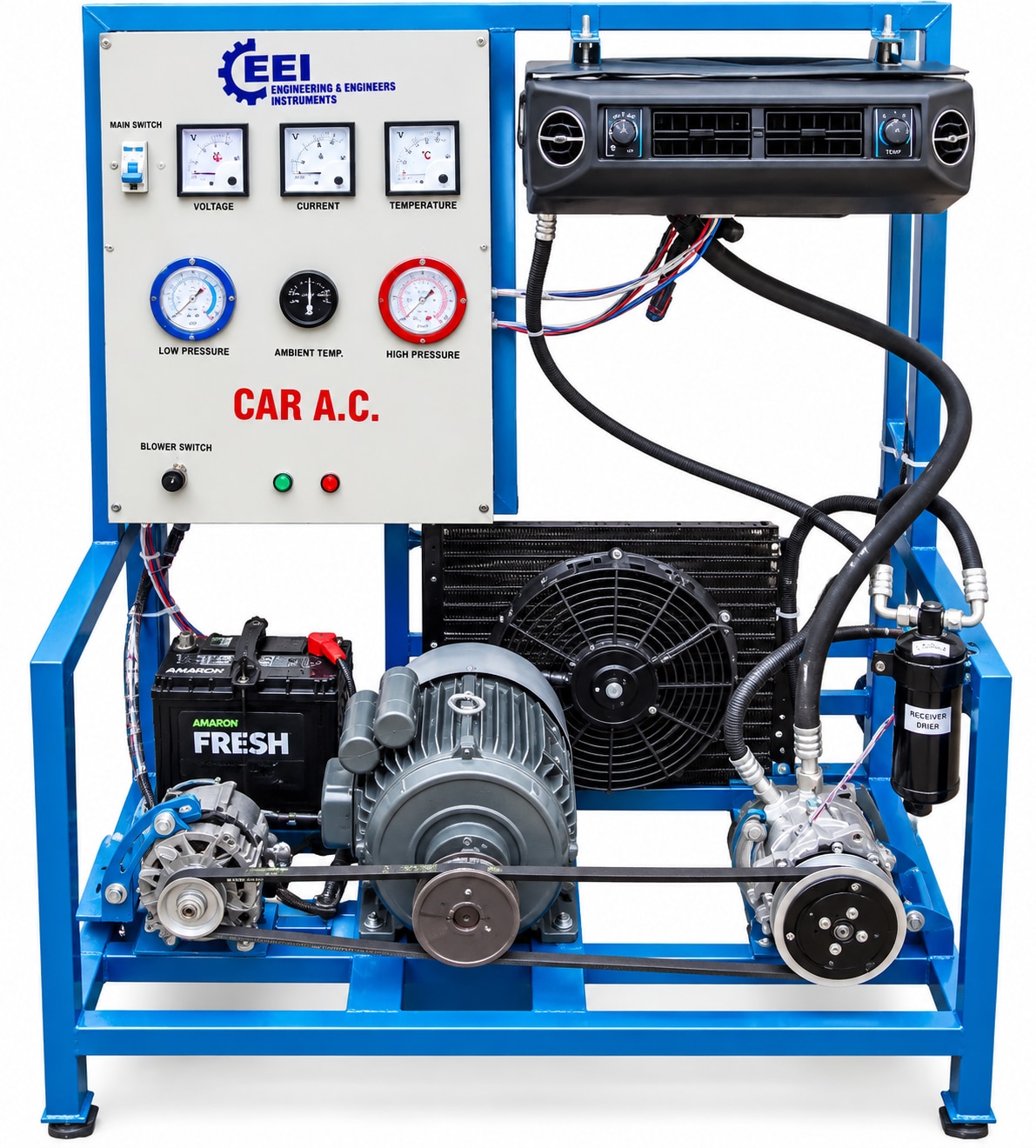

Automobile air conditioner trainer

Make: EEI, Model:SL-19, Origin: India

Description:

The Automobile Air Conditioner Trainer is designed for practical training of ITI students in automotive air-conditioning systems. The trainer demonstrates the basic vapour-compression refrigeration cycle and helps students understand the functions of the compressor, condenser, expansion device and evaporator. It provides facilities for observing system operation and measuring pressure, temperature and electrical parameters.

Technical specifications:

• Compressor

• Condenser and fan

• Filter drier

• Expansion valve or capillary tube

• Evaporator and blower

• Pressure gauges and temperature indicators

• Electrical control panel and connecting pipes

Learning outcomes:

• Understand the working principle of an automobile air conditioner.

• Identify refrigeration components and their functions.

• Measure operating pressures and temperatures.

• Study the effects of expansion-device operation.

• Practice basic inspection, fault diagnosis and troubleshooting.

• Learn safe handling of refrigerants and electrical equipment.
