ALTERNATOR TEST BENCH FOR LMV

Description:

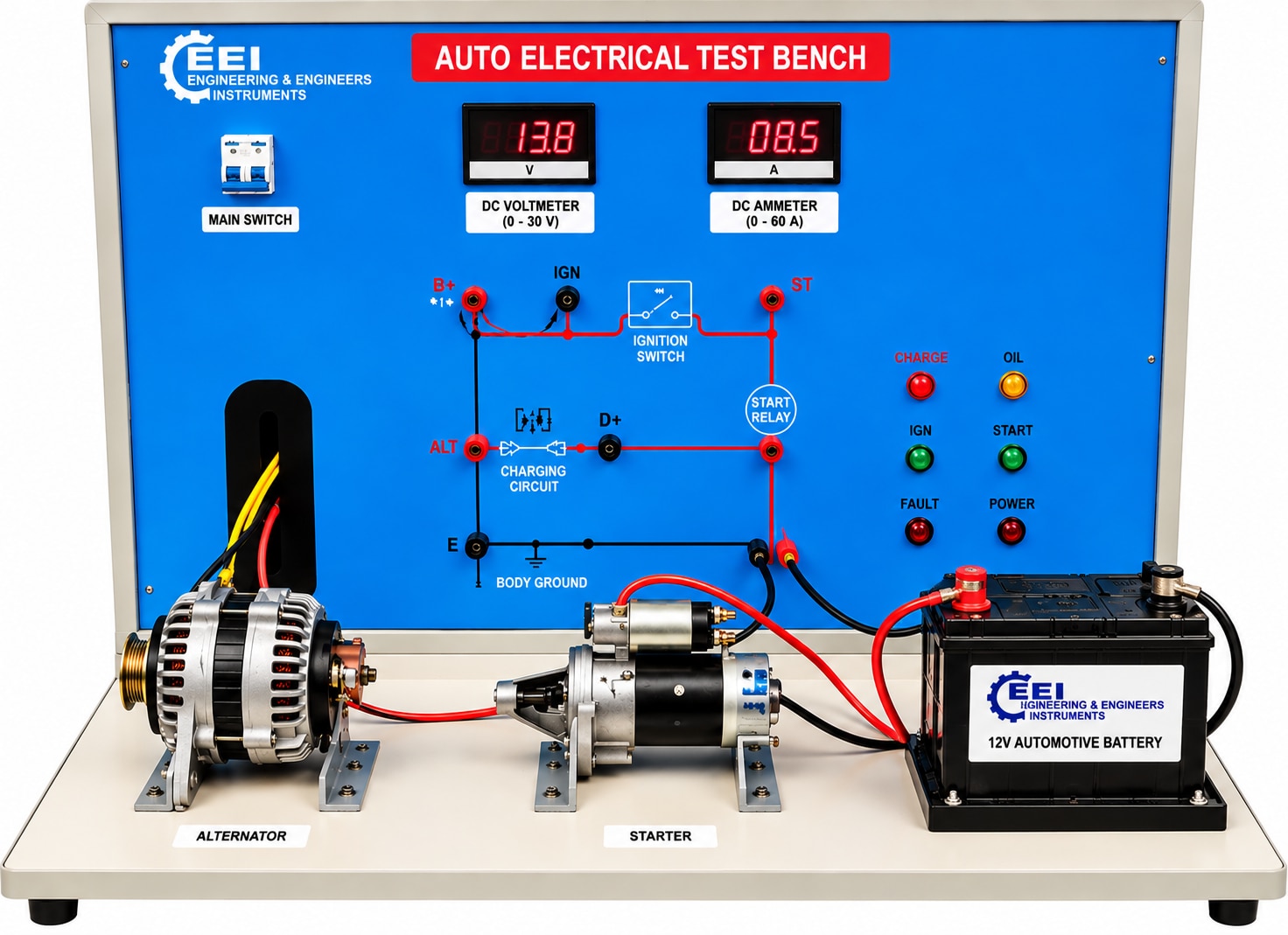

The Auto Electrical Test Bench is designed for practical training and demonstration of automotive electrical systems used in light motor vehicles (LMVs). It consists of a mounted training panel with electrical components, measuring instruments, switches, wiring circuits and test points. The setup helps students understand the operation, testing, maintenance and troubleshooting of vehicle charging, lighting, ignition and auxiliary electrical systems.

Major components:

1. Automotive battery.

2. Alternator and regulator.

3. Combination meter.

4. Fuse box and relay unit.

5. Ignition switch.

6. Lighting and hazard-warning circuits.

7. Wiper and washer assembly.

8. Horn and indicator circuits.

9. DC voltmeter, DC ammeter and tachometer.

10. Wiring harness and test terminals.

Learning outcomes for ITI students:

• Understand basic automotive electrical circuits.

• Identify alternator, battery, fuses, relays and switches.

• Measure voltage, current and rotational speed.

• Study charging, lighting and auxiliary systems.

• Practise electrical fault finding and troubleshooting.
